Light source: PHILIPS MSD Platinum 500L Flex

Life expectancy: 4000 hours

Beam: 1.8～28°

Spot: 2.4～40°

Wash: 2.4～38° (1/10 peak angle)

Color temperature: 6700K±300K

CMY infinite color mixing system

CTO linear change range: 2500K-6700K

1 color wheel with 13 color filters + white, with step and linear color changing methods, and adjustable speed rainbow water effect

1 rotating gobo wheel with 8 gobos fliters (pluggable) + white, which can achieve flowing water and shaking effects, can realize rotation, and the gobo wheel can be positioned

the gobo diameter is 18.5mm, the gobo diameter is 13mm, and the thickness 1.5mm

1 fixed gobo with 15 gobos + white

1 animation wheel

Dimming: 0~100% linear dimming

Soft light: 1pc independent frost, 0~100% soft light effect

Strobe: Electric fast strobe frequency, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)

Prism: one 8-facet rotating prism+one 24-facet rotating prism, can be superimposed, can be bidirectional rotation

Pan 540°, Tilt 250°, 16Bit control

Magnetic encoder positioning

system is used for pan & tilt

Channel control: 24 (Standard)/28 (16Bit)/32 (Extend)

Protocol: DMX512/RDM protocol, Art-net protocol (optional), wireless DMX512 (optional)

Menu display: 2.0 inch black & white LCD display screen, Chinese and English language can be switched freely; 180° reverse display; touch button operation mode, quick return key

Built-in self-rechargeable battery, edit menu when there is no power

When the light is turned off, the power is automatically reduced, saving energy and environmental protection

Intelligent control of fans

Heat dissipation system: Intelligent heat dissipation: The advanced and scientific thermal system design keeps the internal systems of the lamps within a reasonable operating temperature range, which can extend the service life of the lamps and improve the reliability of the lamps

Electronic sensing detection

DMX channel level monitoring

The XY axis is driven by a three-phase motor, with smooth low-speed scanning and low noise

Query lamp information (power-on time, bulb usage time, fault information, etc.) through the display screen

Electronic zoom function

With RDM data bidirectional transmission function

You can change the DMX address code, turn on and off the light bulb, reset the machine, and convert modes from the console

The software upgrade device can be connected to the DMX port of the lamp to upgrade the software

Input signal isolation protection function

FINE ART cloud system

Input voltage: 100-240V~ 50/60Hz

Input power: 800W

Power factor: PF≥0.98

Fixture Dimension: 397 x 272 x 715mm

Package Dimension: 840 x 522 x 949mm (2 pcs / flight case)

Net Weight: 34 kg (fixture)

Horizontal or vertical installation, can be side-mounted

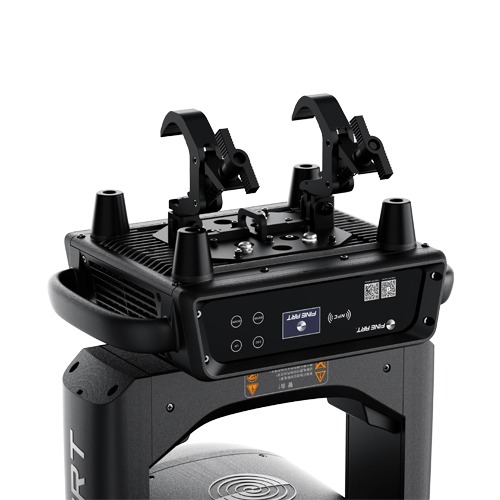

2 integrated light hooks / split light hooks suitable for Φ40-Φ60mm Truss

Safety rope connection hole

IP 66
